We are pleased to launch our new product catalogue

We are pleased to announce the launch of our new Product Guide, featuring our most up-to-date range of products.

This guide is designed to give you the latest product knowledge and technical specifications, making it easier for you to find the perfect solutions for your projects.

This Product Guide provides everything you need, from technical tips & tricks and detailed product overviews to technical specifications. It also covers customisation options for tailored solutions, along with selection matrix to have a proper selection of the suitable products for your application. This guide is your go-to resource.

To view our selection guide catalog, click here.

Product selection matrices

Discover celduc’s product selection matrices, facilitating identification of the ideal solutions for your needs.

Several criteria-based matrices are at your disposal to compare and evaluate multiple design options against a set of criteria.

The following matrices are available :

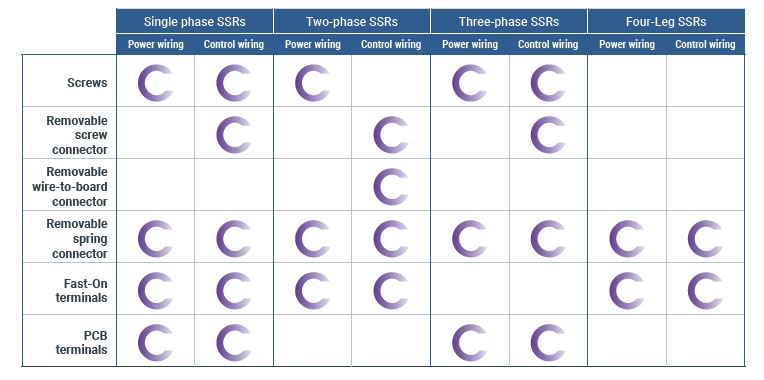

1. SSRs connection types matrix
   This matrix presents all possible connection types on the power side and control side of celduc’s range of Solid State Relays.  Gain valuable time into selecting the right range which meet your requirements !

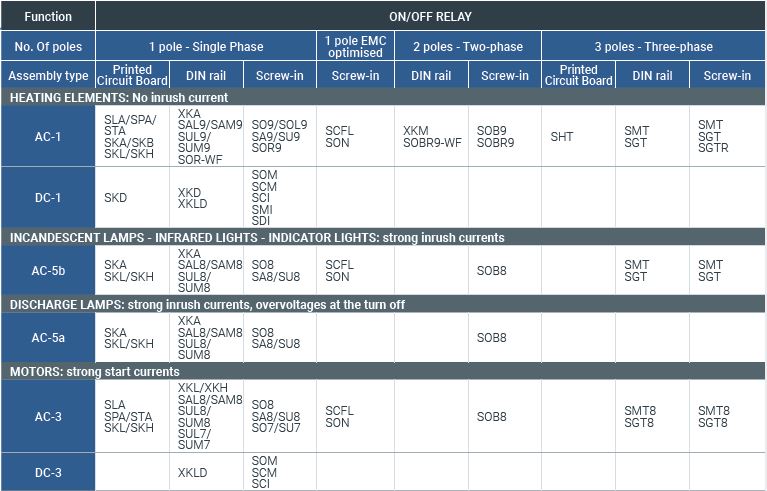

2.  Selection matrix Function / No. of poles / Assembly type / Load type
   This matrix helps you evaluate multiple design options against a set of criteria which are the SSRs function (ON/OFF Relay or diagnosis, temperature regulator or controller or softstarter …), number of poles (1 pole, 2 poles, …), assembly type (PCB, DIN Rail, screw-in,…) and Load type (heating elements, lamps, motors, …).

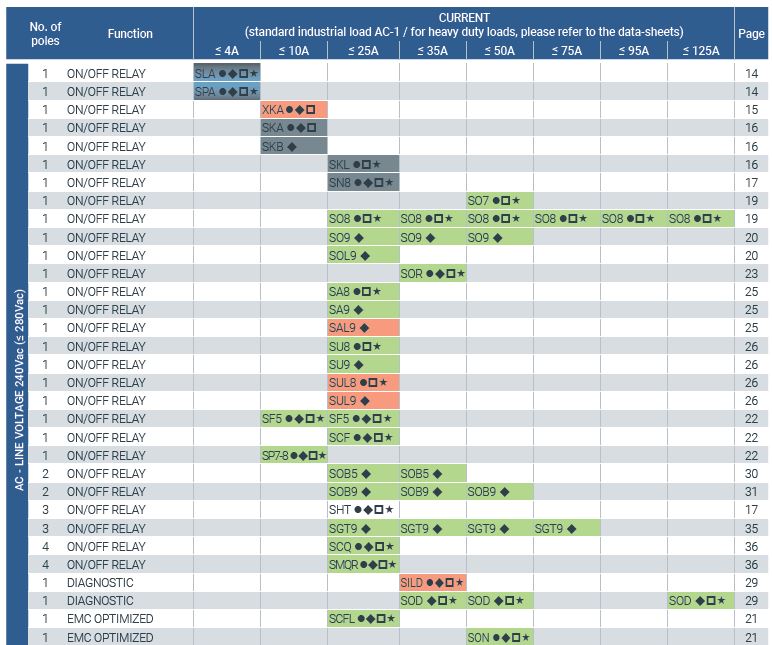

3. Selection matrix Function / Voltage / Current / Mounting type
   Load type as well as load voltage and current are key criteria to make a proper selection of the SSR range to be integrated in your system. So this additional matrix outlines other selection criteria, including AC line voltage and switching current combined with Load type, mounting type and function.



These selection matrices are a good starting point for identifying an appropriate SSR to use in your system. Our sales & technical team stay also at your disposal to help identify the most suitable product(s).

Technical tips and products knowledges

Product knowledge is very important to understand our products and how they meet your needs. It involves knowing each product’s features and benefits, and how they compare to other solutions in the market.

In this new product guide you will find detailed technical reminders to better understand the basic principles of Solid State Relays : construction, protection, special functions as well as applications.

Product technical specifications

Our product guide is devided into 3 parts which correspond to our three product lines :

• Solid State Relays
• Magnetic proximity sensors
• Reed Relays & Switches

A color coding helps you distinguish our product lines :

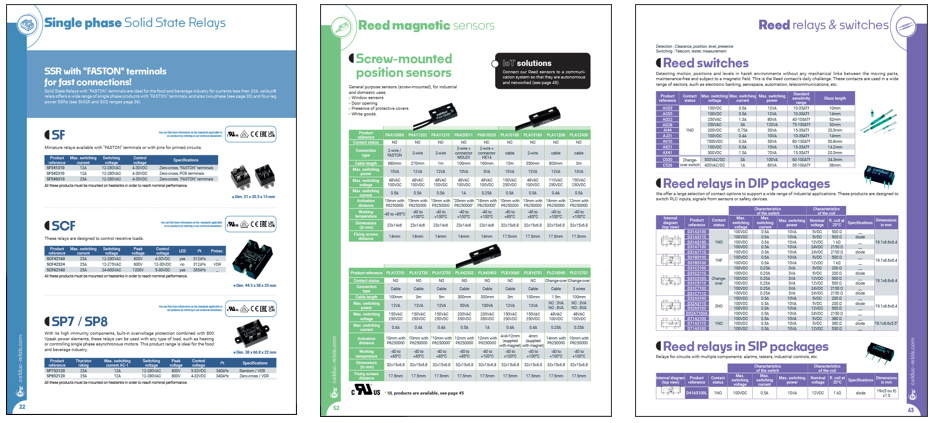

Then for each product line we present the benefits of our products and their main features.

Would you like to know more on a specific part number ? All our technical datasheets are available on our website www.e-catalogue-us.celduc-relais.com

Selection guide catalog available in 7 languages
